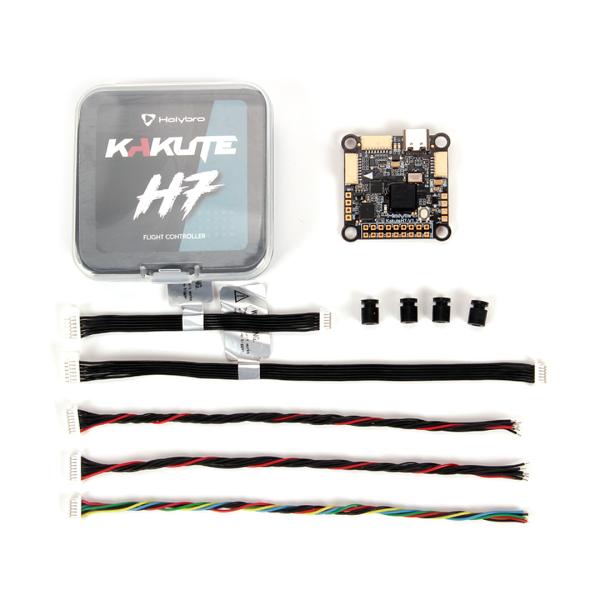

Kakute H7 v1.3 Stacks Flight Controller
Kakute H7 v1.3 stack involves combining the Kakute H7 v1.3 flight controller with compatible Electronic Speed Controllers (ESCs) and a Power Distribution Board (PDB) to form a cohesive and high-performance unit for FPV drones.
Specification
MCU - STM32H743 32-bit processor running at 480 MHz
IMU - MPU6000
Barometer - BMP280
OSD - AT7456E
Onboard Bluetooth chip - ESP32-C3SpeedyBee IOS & Android App Compatible
Note: The Bluetooth onboard is set to automatically turn off when the flight controller is unlocked (arm) and turn on automatically when the flight controller is locked (disarm).
6x UARTs (1,2,3,4,6,7; UART2 is used for Bluetooth telemetry)
9x PWM Outputs (8 Motor Output, 1 LED)
2x JST-SH1.0 8pin ESC port (4in1 ESCs, x8/Octocopter compatible)
1x JST-SH1.0 6pin VTX port (For HD System like Caddx Vista & Air Unit)
Battery input voltage: 7V to 42V
BEC 5V 2A Cont.
BEC 9V 3A Cont
USB Type-C
Mounting - 30.5 x 30.5mm/Φ4mm hole with Φ3mm Grommets
Dimension - 35x35mm
Weight - 8g
